Needle valves are constructed to meter fluid and gases. They are O-ring sealed to eliminate valve maintenance. The O-ring is positioned between the actuating threads and the seat, and seals the closely fitted cylinder to give the lowest possible internal volume and protect the threads from contamination. Available in angle and straight patterns. Both patterns are available for panel or bracket mounting.
The V3 offers precise fluid control through a full metering tip (5°) and lubricated micrometer threads.

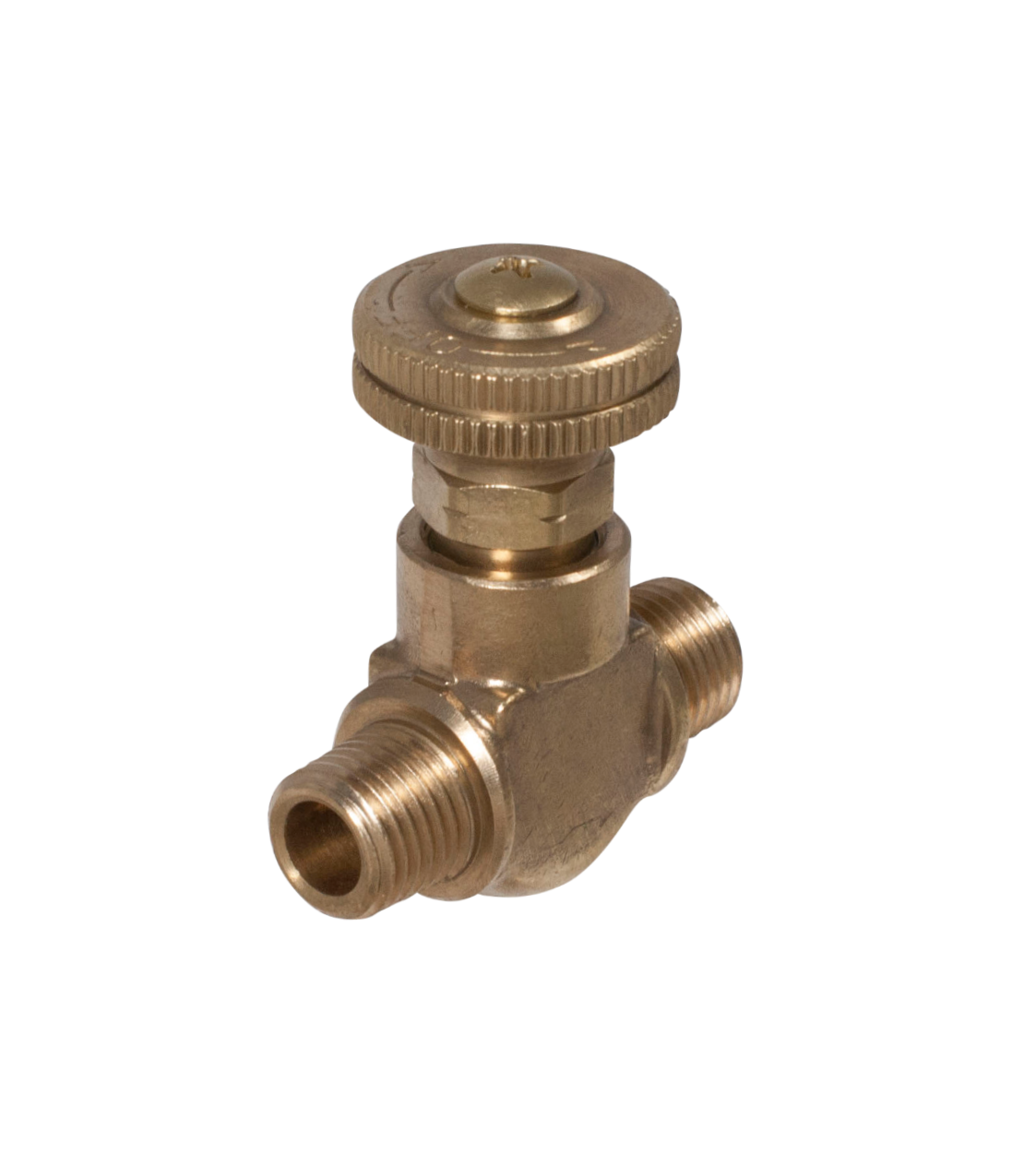

V3B2 Series Needle Valve
Part No. FNPT FNPT Style V3B2-J 1/8" X 1/8" Regular V3B2-L 1/4" X 1/4" Regular V3B2-N 3/8" X 3/8" Regular V3B2-3A-J 1/8" X 1/8" Panel Mount V3B2-3A-L 1/4" X 1/4" Panel Mount V3B2-3A-N 3/8" X 3/8" Panel Mount
