Back Flow Preventer

Back Flow Products

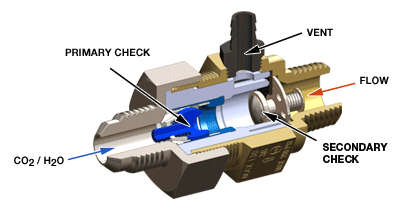

ABF ASSE 1022 vented dual check backflow preventer protects the connected plumbing and drinking water from the corrosive effects of CO2 gas. The CO2 gas mixed with water in a carbonator tank downstream from the backflow preventer exerts back pressure on the discharge primary check valve on every pumping cycle.

If this check valve becomes fouled and leaks, the CO2 gas and water mixture will exhaust through the vent fitting. The secondary check insures that it cannot pass to the inlet or contact any brass or copper from the connected plumbing. The simple internal construction is easy to clean. It utilizes a lead free brass body and stainless steel discharge retainer. Under no circumstance is the CO2 gas and water mixture exposed to the lead-free brass inlet or the connected plumbing.  Anderson Brass Company is a leading valve manufacture of backflow preventors.





ASSE Certificate

ABF Series Backflow Preventors
ABF Series Backflow Preventors

asse 1022 backflow preventer

ABF Series Backflow Preventors
ABF Series Backflow Preventors

asse 1022 backflow preventer

ABF Series Backflow Preventors
ABF Series Backflow Preventors

asse 1022 backflow preventer

ABF Series Backflow Preventors
ABF Series Backflow Preventors

asse 1022 backflow preventer

1/3
1/1
Anderson Brass ABF-1LL ASSE 1022 Backflow Preventer
ABF-1ALL
ABF-1ALL

Anderson Brass ABF-1ALL ASSE 1022 Backflow Preventer

ABF_1BLL
ABF_1BLL

Anderson Brass ABF-1BLL ASSE 1022 Backflow Preventer

ABF_DZR
ABF_DZR

Anderson Brass ABF-1DZR ASINZS 2845.1 Backflow Preventer

ABF-1FDZR
ABF-1FDZR

Anderson Brass ABF-1FDZR ASINZS 2845.1 Backflow Preventer

ABF-1FLL
ABF-1FLL

Anderson Brass ABF-1FLL ASSE 1022 Backflow Preventer

ABF-1HLL
ABF-1HLL

Anderson Brass ABF-1HLL ASSE 1022 Backflow Preventer

ABF-1LL
ABF-1LL

Anderson Brass ABF-1LL ASSE 1022 Backflow Preventer

ABF-1SPLL
ABF-1SPLL

Anderson Brass ABF-1SPLL ASSE 1022 Backflow Preventer

ABF-1SS
ABF-1SS

Anderson Brass ABF-1SLL ASSE 1022 Backflow Preventer

3/8" Hose X 3/8" MNPT
1/4" Plastic Hose Barb

3/8" & 1/2" Hose X 3/8" & 1/2" Hose

1/4" Plastic Hose Barb

3/8" Flare X 3/8" MNPT

1/4" Brass Hose Barb

3/8" Flare X 3/8" Flare

1/4" Brass Hose Barb

3/8" Flare X 3/8" Flare

1/4" Plastic Hose Barb

3/8" Hose X 3/8" Hose & 1/2" Hose

1/4" Plastic Hose Barb

3/8" Flare X 3/8" MNPT

1/4" Plastic Hose Barb

3/8" Flare X 3/8" MNPT

1/8" Brass Hose Barb

3/8" Flare X 3/8" MNPT

1/4" Plastic Hose Barb

Stainless Steel
